高可用架构方案

---

高可用架构说明

---
核心组件 高可用模式 高可用实现方式
apiserver 主备 keepalived
controller-manager 主备 leader election
scheduler 主备 leader election
etcd 集群 kubeadm
  • apiserver 通过haproxy+keepalived实现高可用，当某个节点故障时触发keepalived vip 转移；
  • controller-manager k8s内部通过选举方式产生领导者(由–leader-elect 选型控制，默认为true)，同一时刻集群内只有一个controller-manager组件运行；
  • scheduler k8s内部通过选举方式产生领导者(由–leader-elect 选型控制，默认为true)，同一时刻集群内只有一个scheduler组件运行；
  • etcd 通过运行kubeadm方式自动创建集群来实现高可用，部署的节点数为奇数。如果剩余可用节点数量超过半数，集群可以几乎没有影响的正常工作(3节点方式最多容忍一台机器宕机)

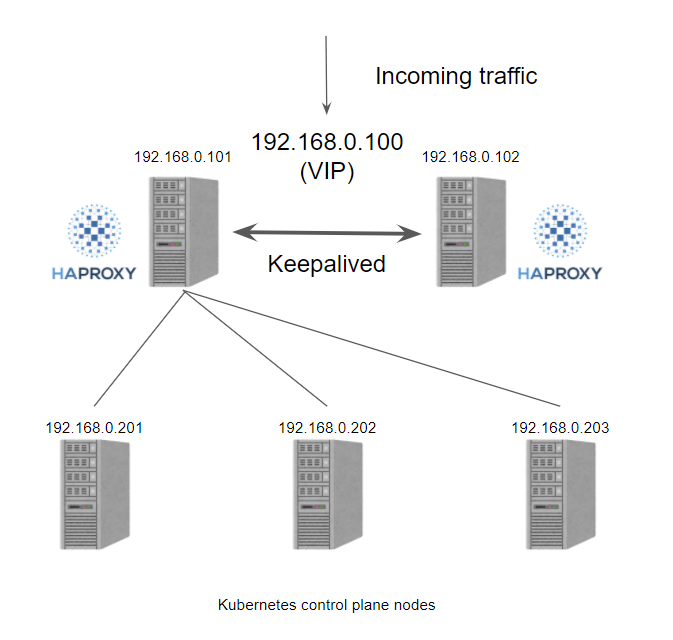

HAProxy+Keepalived方案

---

在以前我们在私有环境下创建 Kubernetes 集群时，我们需要准备一个硬件/软件的负载均衡器来创建多控制面集群，更多的情况下我们会选择使用 HAProxy + Keepalived 来实现这个功能。一般情况下我们会在k8s集群外创建2个负载均衡器的虚拟机，然后分配一个 VIP，然后使用 VIP 为负载均衡器提供服务，通过 VIP 将流量重定向到后端的某个 Kubernetes master节点上。

或者在所有Kubernetes master节点上部署HAProxy + Keepalived服务，实现故障切换。

kube-vip方案

---

除了使用传统方式外，我们也可以通过kube-vip实现高可用。kube-vip 可以通过静态 pod 运行在控制平面节点上，这些 pod 通过ARP 对话来识别每个节点上的其他主机，所以需要在 hosts 文件中设置每个节点的 IP 地址，我们可以选择 BGP 或 ARP 来设置负载平衡器，这与 Metal LB 比较类似。在 ARP 模式下，会选出一个领导者，这个节点将继承虚拟 IP 并成为集群内负载均衡的 Leader，而在 BGP 模式下，所有节点都会通知 VIP 地址。

kube-vip 架构

---

kube-vip 有许多功能设计选择提供高可用性或网络功能，作为VIP/负载平衡解决方案的一部分。

Cluster

---

kube-vip 建立了一个多节点或多模块的集群来提供高可用性。在 ARP 模式下，会选出一个领导者，这个节点将继承虚拟 IP 并成为集群内负载均衡的领导者，而在 BGP 模式下，所有节点都会通知 VIP 地址。

当使用 ARP 或 layer2 时，它将使用领导者选举，当然也可以使用 raft 集群技术，但这种方法在很大程度上已经被领导者选举所取代，特别是在集群中运行时。

虚拟IP

---

集群中的领导者将分配 vip，并将其绑定到配置中声明的选定接口上。当领导者改变时，它将首先撤销 vip，或者在失败的情况下，vip 将直接由下一个当选的领导者分配。

当 vip 从一个主机移动到另一个主机时，任何使用 vip 的主机将保留以前的 vip <-> MAC 地址映射，直到 ARP 过期（通常是30秒）并检索到一个新的 vip <-> MAC 映射，这可以通过使用无偿的 ARP 广播来优化。

ARP

---

kube-vip可以被配置为广播一个无偿的 arp（可选），通常会立即通知所有本地主机 vip <-> MAC 地址映射已经改变。当 ARP 广播被接收时，故障转移通常在几秒钟内完成。

集群规划

---

软件版本

---

操作系统版本：Rocky Linux release 8.8

内核版本：4.18.0-477.21.1.el8_8.x86_64

kubernetes版本：1.27.6

containerd版本：1.6.22

kube-vip版本：0.6.0

主机IP规划

| **主机名** | **ip** | **主机配置** | **用途** | | --- | --- | --- | --- | | master1 | 192.168.10.151 | 2C2G | control-plane | | master2 | 192.168.10.152 | 2C2G | control-plane | | master3 | 192.168.10.153 | 2C2G | control-plane | | work1 | 192.168.10.154 | 2C2G | work | | work2 | 192.168.10.155 | 2C2G | work | | work3 | 192.168.10.156 | 2C2G | work | | VIP | 192.168.10.150 | / | 虚拟IP在控制节点上浮动 | | tiaoban | 192.168.10.100 | 2C2G | 客户端，连接管理K8S集群 |

基础环境与软件准备

---

以下操作在所有节点都执行

修改主机名与hosts文件

1
2
3
4
5
6
7
8
9
hostnamectl set-hostname master1
cat > /etc/hosts << EOF
192.168.10.151   master1
192.168.10.152   master2
192.168.10.153   master3
192.168.10.154   work1
192.168.10.155   work2
192.168.10.156   work3
EOF

验证mac地址uuid

---

保证各节点mac和uuid唯一，防止克隆主机出现网络异常问题

1
2
cat /sys/class/net/ens33/address
cat /sys/class/dmi/id/product_uuid

配置时间同步

1
2
3
4
5
6
dnf -y install chrony
systemctl  start chronyd
systemctl  enable chronyd
timedatectl set-timezone Asia/Shanghai
chronyc sourcestats -v
date

也可以在内网环境其中一台主机启动chronyd服务，其他主机配置chronyd服务地址

关闭防火墙和selinux

---
1
2
3
4
5
systemctl stop firewalld.service
systemctl  disable firewalld
setenforce  0
sed  -i 's/enforcing/disabled/g' /etc/selinux/config
grep  SELINUX= /etc/selinux/config

关闭swap分区

---
1
2
swapoff -a
sed -i '/ swap / s/^(.*)$/#\1/g' /etc/fstab

修改内核相关参数

---

最大限度使用物理内存，bridge 设备在二层转发时也去调用 iptables 配置的三层规则，开启数据包转发。

1
2
3
4
5
6
7
8
cat > /etc/sysctl.d/kubernetes.conf << EOF
vm.swappiness = 0
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF

sysctl -p /etc/sysctl.d/kubernetes.conf

配置yum源

---

配置阿里源

1
2
3
4
5
6
7
8
9
cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

如果阿里源异常，可切换配置清华源

1
2
3
4
5
6
cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=kubernetes
baseurl=https://mirrors.tuna.tsinghua.edu.cn/kubernetes/yum/repos/kubernetes-el7-$basearch
enabled=1
EOF

配置ipvs模块功能

---
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
dnf -y install ipset ipvsadm

cat > /etc/sysctl.d/ipvs.modules <<EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack
modprobe -- br_netfilter
EOF

chmod 755 /etc/sysctl.d/ipvs.modules && bash

/etc/sysctl.d/ipvs.modules && lsmod | grep -e ip_vs -e nf_conntrack
ip_vs_sh               20480  0
ip_vs_wrr              16384  0
ip_vs_rr               16384  0
ip_vs                 180224  6 ip_vs_rr,ip_vs_sh,ip_vs_wrr
nf_conntrack_netlink    53248  0
nf_conntrack          176128  5 xt_conntrack,nf_nat,nf_conntrack_netlink,xt_MASQUERADE,ip_vs
nf_defrag_ipv6         24576  2 nf_conntrack,ip_vs
nf_defrag_ipv4         16384  1 nf_conntrack
nfnetlink              20480  4 nft_compat,nf_conntrack_netlink,nf_tables
libcrc32c              16384  5 nf_conntrack,nf_nat,nf_tables,xfs,ip_vs

# 添加开机自动加载模块
echo "/etc/sysctl.d/ipvs.modules" >> /etc/rc.local
chmod +x /etc/rc.local
# 启用网桥过滤器模块
echo 1 > /proc/sys/net/bridge/bridge-nf-call-iptables
echo 1 > /proc/sys/net/ipv4/ip_forward

安装命令自动补全工具

---
1
2
dnf -y install bash-completion
source /etc/profile.d/bash_completion.sh

container安装

---

安装软件包

1
2
3
4
5
6
7
8
9
10
11
12
13
14
# 安装依赖
dnf install -y yum-utils device-mapper-persistent-data lvm2

# 添加yum源
dnf config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

# 查看可安装的containerd版本
dnf list containerd.io.x86_64 --showduplicates | sort -r

# 安装1.6.22版本containerd
dnf install -y containerd.io-1.6.22-3.1.el8.x86_64

# 查看版本信息
containerd -v

配置container

**生成默认配置文件**
1
containerd config default > /etc/containerd/config.toml

替换镜像源

由于国内环境原因我们需要将 sandbox_image 镜像源设置为阿里云google_containers镜像源。把sandbox_image = “k8s.gcr.io/pause:3.6”修改为：sandbox_image=“registry.aliyuncs.com/google_containers/pause:3.6”

1
sed -i 's/sandbox_image\ =.*/sandbox_image\ =\ "registry.aliyuncs.com\/google_containers\/pause:3.6"/g' /etc/containerd/config.toml|grep sandbox_image

配置cgroup驱动器

在 Linux 上，控制组（CGroup）用于限制分配给进程的资源。
kubelet 和底层容器运行时都需要对接控制组 为 Pod 和容器管理资源 ，如 CPU、内存这类资源设置请求和限制。 若要对接控制组（CGroup），kubelet 和容器运行时需要使用一个 cgroup 驱动。 关键的一点是 kubelet 和容器运行时需使用相同的 cgroup 驱动并且采用相同的配置。

1
sed -i 's/SystemdCgroup\ =\ false/SystemdCgroup\ =\ true/g' /etc/containerd/config.toml

配置国内镜像加速地址

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
# 修改container配置，指定registry配置从文件读取
vim /etc/containerd/config.toml
    [plugins."io.containerd.grpc.v1.cri".registry]
      config_path = "/etc/containerd/certs.d"

# 创建配置文件目录
mkdir -p /etc/containerd/certs.d/docker.io

# 新增加速配置
cat > /etc/containerd/certs.d/docker.io/hosts.toml << EOF
server = "https://docker.io"
[host."https://o2j0mc5x.mirror.aliyuncs.com"]
  capabilities = ["pull", "resolve"]
server = "https://k8s.gcr.io"
[host."https://gcr.mirrors.ustc.edu.cn/google-containers/"]
  capabilities = ["pull", "resolve"]
server = "https://quay.io"
[host."https://mirror.ccs.tencentyun.com"]
  capabilities = ["pull", "resolve"]
EOF

启动 container服务

1
systemctl enable containerd --now

安装配置crictl

crictl 是 CRI 兼容的容器运行时命令行接口，和containerd无关，由Kubernetes提供，可以使用它来检查和调试 k8s 节点上的容器运行时和应用程序。

下载地址：https://github.com/kubernetes-sigs/cri-tools/releases

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
# 下载
wget https://github.com/kubernetes-sigs/cri-tools/releases/download/v1.27.1/crictl-v1.27.1-linux-amd64.tar.gz
# 解压
tar -zxvf crictl-v1.27.1-linux-amd64.tar.gz -C /usr/local/bin
# 配置
cat > /etc/crictl.yaml << EOF
runtime-endpoint: "unix:///run/containerd/containerd.sock"
image-endpoint: "unix:///run/containerd/containerd.sock"
timeout: 0
debug: false
pull-image-on-create: false
disable-pull-on-run: false
EOF
# 验证
crictl version

安装配置nerdctl(建议)

containerd虽然可直接提供给终端用户直接使用，也提供了命令行工具(ctr)，但并不是很友好，所以nerdctl应运而生，它也是containerd的命令行工具，支持docker cli关于容器生命周期管理的所有命令，并且支持docker compose (nerdctl compose up)
1
2
3
4
5
6
7
8
9
10
11
# 下载
wget https://github.com/containerd/nerdctl/releases/download/v1.5.0/nerdctl-1.5.0-linux-amd64.tar.gz
# 解压
tar -zxvf nerdctl-1.5.0-linux-amd64.tar.gz
# 复制文件
cp nerdctl /usr/bin/
# 配置 nerdctl 参数自动补齐
echo 'source <(nerdctl completion bash)' >> /etc/profile
source /etc/profile
# 验证
nerdctl -v

安装k8s软件包并配置

---
  • 安装软件包
1
2
3
4
yum install -y kubelet kubeadm kubectl
# 默认安装最新版本，如果需要安装老版本，使用如下命令
yum list kubeadm --showduplicates | sort -r
yum install -y kubelet-1.27.6 kubeadm-1.27.6 kubectl-1.27.6
  • 指定kubelet的容器运行时并启动。
1
2
crictl config runtime-endpoint unix:///run/containerd/containerd.sock
systemctl enable kubelet --now
  • kubectl命令补全
1
2
echo "source <(kubectl completion bash)" >> ~/.bash_profile
source ~/.bash_profile

VIP配置(kube-vip)

---

以下操作在master1节点执行

准备工作

我们使用的vip是192.168.10.150

网卡名称是ens160

kube-vip使用arp模式

1
2
3
4
[root@master1 ~]# mkdir -p /etc/kubernetes/manifests
[root@master1 ~]# export VIP=192.168.10.150
[root@master1 ~]# export INTERFACE=ens160
[root@master1 ~]# export KVVERSION=v0.8.2

生成配置文件

---

获取 kube-vip 的 docker 镜像，并在 /etc/kuberentes/manifests 中设置静态 pod 的 yaml 资源清单文件，这样 Kubernetes 就会自动在每个控制平面节点上部署 kube-vip 的 pod 了。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
[root@master1 ~]# alias kube-vip="ctr image pull ghcr.io/kube-vip/kube-vip:$KVVERSION; ctr run --rm --net-host ghcr.io/kube-vip/kube-vip:$KVVERSION vip /kube-vip"
[root@master1 ~]# kube-vip manifest pod \
    --interface $INTERFACE \
    --address $VIP \
    --controlplane \
    --services \
    --arp \
    --leaderElection | tee /etc/kubernetes/manifests/kube-vip.yaml
# 生成文件如下所示：
apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  name: kube-vip
  namespace: kube-system
spec:
  containers:
  - args:
    - manager
    env:
    - name: vip_arp
      value: "true"
    - name: port
      value: "6443"
    - name: vip_nodename
      valueFrom:
        fieldRef:
          fieldPath: spec.nodeName
    - name: vip_interface
      value: ens160
    - name: vip_cidr
      value: "32"
    - name: dns_mode
      value: first
    - name: cp_enable
      value: "true"
    - name: cp_namespace
      value: kube-system
    - name: svc_enable
      value: "true"
    - name: svc_leasename
      value: plndr-svcs-lock
    - name: vip_leaderelection
      value: "true"
    - name: vip_leasename
      value: plndr-cp-lock
    - name: vip_leaseduration
      value: "5"
    - name: vip_renewdeadline
      value: "3"
    - name: vip_retryperiod
      value: "1"
    - name: address
      value: 192.168.10.150
    - name: prometheus_server
      value: :2112
    image: ghcr.io/kube-vip/kube-vip:v0.8.2
    imagePullPolicy: IfNotPresent
    name: kube-vip
    resources: {}
    securityContext:
      capabilities:
        add:
        - NET_ADMIN
        - NET_RAW
    volumeMounts:
    - mountPath: /etc/kubernetes/admin.conf
      name: kubeconfig
  hostAliases:
  - hostnames:
    - kubernetes
    ip: 127.0.0.1
  hostNetwork: true
  volumes:
  - hostPath:
      path: /etc/kubernetes/admin.conf
    name: kubeconfig
status: {}

当执行完kubeadm init后，kubelet会去加载这里面的yaml创建kube-vip容器。

拷贝至其他master节点

---

所有master节点都需要部署一个kube-vip，我们只需要将yaml文件存放在/etc/kubernetes/manifests/目录下，kubelet启动时会自动加载资源清单并创建pod。

1
2
[root@master1 ~]# scp /etc/kubernetes/manifests/kube-vip.yaml master2:/etc/kubernetes/manifests/kube-vip.yaml
[root@master1 ~]# scp /etc/kubernetes/manifests/kube-vip.yaml master3:/etc/kubernetes/manifests/kube-vip.yaml
1
2
sed -i 's#path: /etc/kubernetes/admin.conf#path: /etc/kubernetes/super-admin.conf#' \
          /etc/kubernetes/manifests/kube-vip.yaml

VIP配置(keepalived+haproxy)

---

以下操作在所有master节点执行

haproxy配置

---

安装haproxy

1
[root@master1 ~]# dnf -y install haproxy

编辑配置文件，所有master节点配置一样。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
[root@master1 ~]# vim /etc/haproxy/haproxy.cfg
global
    log         127.0.0.1 local2
    pidfile     /var/run/haproxy.pid
    maxconn     4000
defaults
    mode                    http
    log                     global
    option                  dontlognull
    option http-server-close
    option                  redispatch
    retries                 3
    timeout http-request    10s
    timeout queue           1m
    timeout connect         10s
    timeout client          1m
    timeout server          1m
    timeout http-keep-alive 10s
    timeout check           10s
    maxconn                 3000

listen admin_stats
    bind    *:8888    #监听的ip端口号
    stats   enable
    stats   refresh 30s   #统计页面自动刷新时间
    stats   uri /admin    #访问的uri   ip:8080/admin
    stats   realm haproxy
    stats   auth admin:Miaohua123!  #认证用户名和密码
    stats   hide-version   #隐藏HAProxy的版本号
    stats   admin if TRUE   #管理界面，如果认证成功了，可通过webui管理节点

frontend  kubernetes-apiserver
    mode tcp
    bind *:9443
    # bind *:443 ssl # To be completed ....
    default_backend             kubernetes-apiserver

backend kubernetes-apiserver
    mode        tcp
    balance     roundrobin
# k8s-apiservers backend
    server master1 192.168.10.151:6443 check
    server master2 192.168.10.152:6443 check
    server master3 192.168.10.153:6443 check

启动服务并验证

1
2
3
4
5
[root@master1 ~]# systemctl start haproxy.service
[root@master1 ~]# systemctl enable haproxy.service
[root@master1 ~]# ss -tnlp | grep haproxy
LISTEN    0         3000               0.0.0.0:8888             0.0.0.0:*        users:(("haproxy",pid=7062,fd=6))
LISTEN    0         3000               0.0.0.0:9443             0.0.0.0:*        users:(("haproxy",pid=7062,fd=8))

keepalived配置

---

安装keepalived服务

1
[root@master1 ~]# dnf -y install keepalived

添加keepalived配置文件，master1节点内容如下。master2节点state改为BACKUP，priority改为99。master3节点state改为BACKUP，priority改为98。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
[root@master1 ~]# vim /etc/keepalived/keepalived.conf
global_defs {
   script_user root
   enable_script_security
}

vrrp_script chk_haproxy {
    script "/etc/keepalived/check.sh"
    interval 1
    weight -2
}

vrrp_instance VI_1 {
  state MASTER # 实例类型
  interface ens33 # 网卡名称
  virtual_router_id 201
  priority 100 # 优先级
  advert_int 1

  virtual_ipaddress {
    192.168.10.150/32
  }

  authentication {
    auth_type PASS
    auth_pass 1111
  }

  track_script {
      chk_haproxy
  }
}

添加服务检测脚本，如果containerd进程停止则进行故障切换

1
2
3
4
5
6
7
8
[root@master1 ~]# vim /etc/keepalived/check.sh
#!/bin/bash
if systemctl is-active --quiet containerd; then
    exit 0
else
    exit 1
fi
[root@master1 ~]# chmod +x /etc/keepalived/check.sh

启动服务并验证

1
2
3
4
5
[root@master1 ~]# systemctl start keepalived.service
[root@master1 ~]# systemctl enable keepalived
[root@master1 ~]# ip a | grep 192.168.10
    inet 192.168.10.151/24 brd 192.168.10.255 scope global ens33
    inet 192.168.10.150/32 scope global ens33

初始化master节点

---

以下操作在master1节点执行

配置集群参数

---

获取默认的初始化参数文件

1
[root@master1 ~]# kubeadm config print init-defaults > kubeadm-conf.yaml

修改配置文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
[root@master1 ~]# cat kubeadm-conf.yaml
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 192.168.10.151  # 指定当前master1节点IP
  bindPort: 6443 # 当前master1节点端口
nodeRegistration:
  criSocket: unix:///run/containerd/containerd.sock # 使用containerd的socket地址
  imagePullPolicy: IfNotPresent
  name: master1 # 节点主机名
  taints: null
---
apiServer:
  extraArgs:
    authorization-mode: Node,RBAC
  timeoutForControlPlane: 4m0s
  certSANs:  # 添加其他master节点的相关信息
  - 127.0.0.1
  - master1
  - master2
  - master3
  - 192.168.10.150
  - 192.168.10.151
  - 192.168.10.152
  - 192.168.10.153
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers # 阿里云镜像
kind: ClusterConfiguration
kubernetesVersion: 1.27.6 # k8s版本
controlPlaneEndpoint: 192.168.10.150:6443  # 设置控制平面Endpoint地址和端口
networking:
  dnsDomain: cluster.local
  serviceSubnet: 10.96.0.0/12
  podSubnet: 10.244.0.0/16  # 指定 pod 子网
scheduler: {}
---
# 指定kube-proxy基于ipvs模式
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind:  KubeProxyConfiguration
mode: ipvs
---
apiVersion: kubelet.config.k8s.io/v1beta1
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.crt
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 0s
    cacheUnauthorizedTTL: 0s
cgroupDriver: systemd   # 指定cgroup驱动器为systemd模式
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
cpuManagerReconcilePeriod: 0s
evictionPressureTransitionPeriod: 0s
fileCheckFrequency: 0s
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 0s
imageMinimumGCAge: 0s
kind: KubeletConfiguration
logging: {}
memorySwap: {}
nodeStatusReportFrequency: 0s
nodeStatusUpdateFrequency: 0s
rotateCertificates: true
runtimeRequestTimeout: 0s
shutdownGracePeriod: 0s
shutdownGracePeriodCriticalPods: 0s
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 0s
syncFrequency: 0s
volumeStatsAggPeriod: 0s

拉取镜像

---

将master1节点的kubeadm-conf.yaml复制到其他master节点，所有master节点都提前执行

1
2
3
4
5
6
7
8
9
10
[root@master1 ~]# kubeadm config images pull --config kubeadm-conf.yaml
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-apiserver:v1.27.6
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-controller-manager:v1.27.6
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-scheduler:v1.27.6
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-proxy:v1.27.6
[config/images] Pulled registry.aliyuncs.com/google_containers/pause:3.9
[config/images] Pulled registry.aliyuncs.com/google_containers/etcd:3.5.7-0
[config/images] Pulled registry.aliyuncs.com/google_containers/coredns:v1.10.1
# CRI sandbox(pause) image默认使用registry.k8s.io/pause:3.6，由于网络原因无法拉取，直接改为阿里镜像标签即可。
[root@master1 ~]# nerdctl -n k8s.io tag registry.aliyuncs.com/google_containers/pause:3.9 registry.k8s.io/pause:3.6

集群初始化

---
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[root@master1 ~]# kubeadm init --upload-certs --config=kubeadm-conf.yaml
Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

You can now join any number of the control-plane node running the following command on each as root:

  kubeadm join 192.168.10.150:6443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:4f8a53db87e99a4f3e8512169b7269ef2e28779e4602c0c3df898c645973c88c \
        --control-plane --certificate-key efde545c8ea984be7ce9449ea1e77eb44659f1708001be512b7e01f70cf568b7

Please note that the certificate-key gives access to cluster sensitive data, keep it secret!
As a safeguard, uploaded-certs will be deleted in two hours; If necessary, you can use
"kubeadm init phase upload-certs --upload-certs" to reload certs afterward.

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.10.150:6443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:4f8a53db87e99a4f3e8512169b7269ef2e28779e4602c0c3df898c645973c88c
  • –upload-certs 标志用来将在所有控制平面实例之间的共享证书上传到集群。然后根据安装提示拷贝 kubeconfig 文件
  • 如果配置问题导致集群初始化失败，可重置集群再次初始化：
1
2
3
[root@master1 ~]# kubeadm reset
[root@master1 ~]# ipvsadm --clear
[root@master1 ~]# rm -rf $HOME/.kube/config

根据提示配置环境变量

---
1
2
3
4
5
[root@master1 ~]# mkdir -p $HOME/.kube
[root@master1 ~]# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@master1 ~]# chown $(id -u):$(id -g) $HOME/.kube/config
[root@master1 ~]# echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> ~/.bash_profile
[root@tiaoban ~]# source ~/.bash_profile

安装flannel网络

---
  • 下载资源清单配置文件
1
[root@master1 ~]# wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml
  • 创建资源
1
[root@master1 ~]# kubectl apply -f kube-flannel.yml
  • 如果镜像不能正常拉取，所有节点需提前导入镜像，并修改yaml文件镜像拉取策略
1
imagePullPolicy: IfNotPresent
  • 镜像导入与查询
1
2
3
4
5
[root@work3 ~]# ctr -n=k8s.io image import flannel.tar
unpacking docker.io/flannel/flannel:v0.22.1 (sha256:0b78f714708e837ae667c204cc918649ebcf2441b1d18ebde9a6564254932ee5)...done
[root@work3 ~]# crictl images
IMAGE                                                             TAG                 IMAGE ID            SIZE
docker.io/flannel/flannel-cni-plugin                              v1.2.0              a55d1bad692b7       8.32MB

其他节点加入集群

---

master节点加入集群

---

另外两个节点 master2 和 master3 都执行上面的 join 命令，上面的命令中的 –control-plane 就是通知 kubeadm join 创建一个新的控制平面，–certificate-key 会从集群中的 kubeadm-certs Secret 下载控制平面证书并使用给定的密钥进行解密。

1
2
3
4
5
6
7
8
9
# 以master2节点为例
[root@master2 ~]#   kubeadm join 192.168.10.150:6443 --token abcdef.0123456789abcdef \
>         --discovery-token-ca-cert-hash sha256:4f8a53db87e99a4f3e8512169b7269ef2e28779e4602c0c3df898c645973c88c \
>         --control-plane --certificate-key efde545c8ea984be7ce9449ea1e77eb44659f1708001be512b7e01f70cf568b7

# 然后根据提示配置环境变量
[root@master2 ~]# mkdir -p $HOME/.kube
[root@master2 ~]# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@master2 ~]# chown $(id -u):$(id -g) $HOME/.kube/config

work节点加入集群

---
1
2
kubeadm join 192.168.10.150:6443 --token abcdef.0123456789abcdef \
        --discovery-token-ca-cert-hash sha256:4f8a53db87e99a4f3e8512169b7269ef2e28779e4602c0c3df898c645973c88c

client配置

---
1
2
3
4
5
6
7
# 安装指定版本的kubelet
[root@tiaoban ~]# yum install -y kubectl-1.27.6
# 拷贝集群认证文件并配置环境变量
[root@tiaoban ~]# mkdir -p /etc/kubernetes
[root@tiaoban ~]# scp master1:/etc/kubernetes/admin.conf /etc/kubernetes/
[root@tiaoban ~]# echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> ~/.bash_profile
[root@tiaoban ~]# source ~/.bash_profile

集群验证

---

以下操作在tiaoban节点执行

查看节点信息

---
1
2
3
4
5
6
7
8
[root@tiaoban ~]# kubectl get node
NAME      STATUS   ROLES           AGE    VERSION
master1   Ready    control-plane   18m     v1.27.6
master2   Ready    control-plane   12m7s   v1.27.6
master3   Ready    control-plane   13m6s   v1.27.6
work1     Ready    <none>          8m25s   v1.27.6
work2     Ready    <none>          8m21s   v1.27.6
work3     Ready    <none>          8m17s   v1.27.6

查看pod信息

---
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
[root@master1 ~]# kubectl get pod -A -o wide
NAMESPACE      NAME                              READY   STATUS    RESTARTS       AGE     IP               NODE      NOMINATED NODE   READINESS GATES
kube-flannel   kube-flannel-ds-2nqk5             1/1     Running   0              134s   192.168.10.151   master1   <none>           <none>
kube-flannel   kube-flannel-ds-c87jk             1/1     Running   0              134s   192.168.10.155   work2     <none>           <none>
kube-flannel   kube-flannel-ds-hnps5             1/1     Running   0              134s   192.168.10.154   work1     <none>           <none>
kube-flannel   kube-flannel-ds-jphgx             1/1     Running   0              154s   192.168.10.153   master3   <none>           <none>
kube-flannel   kube-flannel-ds-lxpsp             1/1     Running   0              134s   192.168.10.156   work3     <none>           <none>
kube-flannel   kube-flannel-ds-rx5kf             1/1     Running   0              134s   192.168.10.152   master2   <none>           <none>
kube-system    coredns-7bdc4cb885-cjbbx          1/1     Running   0              14m    10.244.5.3       work1     <none>           <none>
kube-system    coredns-7bdc4cb885-sgsns          1/1     Running   0              14m    10.244.5.2       work1     <none>           <none>
kube-system    etcd-master1                      1/1     Running   1              14m    192.168.10.151   master1   <none>           <none>
kube-system    etcd-master2                      1/1     Running   0              15m    192.168.10.152   master2   <none>           <none>
kube-system    etcd-master3                      1/1     Running   0              14m    192.168.10.153   master3   <none>           <none>
kube-system    kube-apiserver-master1            1/1     Running   1              14m    192.168.10.151   master1   <none>           <none>
kube-system    kube-apiserver-master2            1/1     Running   0              15m    192.168.10.152   master2   <none>           <none>
kube-system    kube-apiserver-master3            1/1     Running   2 (154m ago)   14m    192.168.10.153   master3   <none>           <none>
kube-system    kube-controller-manager-master1   1/1     Running   3 (40m ago)    14m    192.168.10.151   master1   <none>           <none>
kube-system    kube-controller-manager-master2   1/1     Running   0              15m    192.168.10.152   master2   <none>           <none>
kube-system    kube-controller-manager-master3   1/1     Running   0              14m    192.168.10.153   master3   <none>           <none>
kube-system    kube-proxy-9jsq7                  1/1     Running   0              18m    192.168.10.155   work2     <none>           <none>
kube-system    kube-proxy-cpb5n                  1/1     Running   0              14m    192.168.10.151   master1   <none>           <none>
kube-system    kube-proxy-dm2rm                  1/1     Running   0              14m    192.168.10.153   master3   <none>           <none>
kube-system    kube-proxy-g26c4                  1/1     Running   0              15m    192.168.10.152   master2   <none>           <none>
kube-system    kube-proxy-jkhnj                  1/1     Running   0              18m    192.168.10.156   work3     <none>           <none>
kube-system    kube-proxy-x29d9                  1/1     Running   0              18m    192.168.10.154   work1     <none>           <none>
kube-system    kube-scheduler-master1            1/1     Running   3 (39m ago)    14m    192.168.10.151   master1   <none>           <none>
kube-system    kube-scheduler-master2            1/1     Running   0              15m    192.168.10.152   master2   <none>           <none>
kube-system    kube-scheduler-master3            1/1     Running   0              14m    192.168.10.153   master3   <none>           <none>
kube-system    kube-vip-master1                  1/1     Running   0              1m     192.168.10.151   master1   <none>           <none>
kube-system    kube-vip-master2                  1/1     Running   1 (38m ago)    15m    192.168.10.152   master2   <none>           <none>
kube-system    kube-vip-master3                  1/1     Running   0              14m    192.168.10.153   master3   <none>           <none>

集群高可用测试

---

组件所在节点查看

---

查看VIP所在节点（当前位于master2）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
[root@tiaoban ~]# ansible k8s-ha -m shell -a "ip a | grep 192.168.10.150"
[WARNING]: Invalid characters were found in group names but not replaced, use -vvvv to see details
work2 | FAILED | rc=1 >>
non-zero return code
master2 | CHANGED | rc=0 >>
    inet 192.168.10.150/32 scope global ens160
work1 | FAILED | rc=1 >>
non-zero return code
master1 | FAILED | rc=1 >>
non-zero return code
master3 | FAILED | rc=1 >>
non-zero return code
work3 | FAILED | rc=1 >>
non-zero return code

查看其他组件所在节点（controller-manager位于master1，scheduler 位于master3）

1
2
3
4
5
6
7
8
9
[root@tiaoban ~]# kubectl get leases -n kube-system
NAME                                   HOLDER                                                                      AGE
apiserver-bqv2ezepcsovu7bfu7lvbrdg2m   apiserver-bqv2ezepcsovu7bfu7lvbrdg2m_c3892ab2-71ee-40f4-be66-4f65c664f568   175m
apiserver-bskcrn2i4gf5c5gco6huepssle   apiserver-bskcrn2i4gf5c5gco6huepssle_00e69eb5-4df9-4c3d-87e0-2eb54d7d93c4   3h6m
apiserver-s5dbgrswajhxxnkoaowmosesjm   apiserver-s5dbgrswajhxxnkoaowmosesjm_3665e3ce-dc72-440d-ba7a-ff08f9c71b6a   176m
kube-controller-manager                master1_08adefe3-56c0-4c87-94b7-9adda172eaf3                                3h6m
kube-scheduler                         master3_59611769-b42d-459a-aa45-6ccf535d793f                                3h6m
plndr-cp-lock                          master3                                                                     176m
plndr-svcs-lock                        master1                                                                     176m

创建deployment和svc，模拟生产业务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
# 新建资源清单
[root@tiaoban k8s]# cat > demo.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: myapp
spec:
  replicas: 3
  selector:
    matchLabels:
      app: myapp
  template:
    metadata:
      labels:
        app: myapp
    spec:
      containers:
      - name: myapp
        image: ikubernetes/myapp:v1
        ports:
        - containerPort: 80
          name: http
---
apiVersion: v1
kind: Service
metadata:
  name: myapp-svc
spec:
  selector:
    app: myapp
  type: NodePort
  ports:
  - port: 80
    targetPort:  80
EOF

# 创建资源
[root@tiaoban k8s]# kubectl apply -f demo.yaml
deployment.apps/myapp created
service/myapp-svc created

# 查看资源信息
[root@tiaoban k8s]# kubectl get pod -o wide
NAME                     READY   STATUS    RESTARTS   AGE    IP           NODE    NOMINATED NODE   READINESS GATES
myapp-64b6b8fbcd-jm5q2   1/1     Running   0          101s   10.244.3.2   work3   <none>           <none>
myapp-64b6b8fbcd-qqjsd   1/1     Running   0          101s   10.244.4.2   work2   <none>           <none>
myapp-64b6b8fbcd-tsmwx   1/1     Running   0          101s   10.244.5.6   work1   <none>           <none>

[root@tiaoban k8s]# kubectl get svc
NAME         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
kubernetes   ClusterIP   10.96.0.1        <none>        443/TCP        3h17m
myapp-svc    NodePort    10.110.186.236   <none>        80:30380/TCP   5m6s

# 访问测试
[root@tiaoban k8s]# curl 192.168.10.150:30380
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>

宕机一台控制节点

---

将VIP所在的master2节点关机，模拟宕机

1
[root@master3 ~]# init 0

各组件信息查看

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
# VIP位于master1
[root@tiaoban k8s]# ansible k8s-ha -m shell -a "ip a | grep 192.168.10.150"
[WARNING]: Invalid characters were found in group names but not replaced, use -vvvv to see details
[WARNING]: Invalid characters were found in group names but not replaced, use -vvvv to see details
master2 | UNREACHABLE! => {
    "changed": false,
    "msg": "Failed to connect to the host via ssh: ssh: connect to host master2 port 22: Connection refused",
    "unreachable": true
}
work2 | FAILED | rc=1 >>
non-zero return code
work3 | FAILED | rc=1 >>
non-zero return code
work1 | FAILED | rc=1 >>
non-zero return code
master3 | FAILED | rc=1 >>
non-zero return code
master1 | CHANGED | rc=0 >>
    inet 192.168.10.150/32 scope global ens160

# controller-manager位于master1 scheduler位于master3
[root@tiaoban k8s]# kubectl get leases -n kube-system
NAME                                   HOLDER                                                                      AGE
apiserver-bqv2ezepcsovu7bfu7lvbrdg2m   apiserver-bqv2ezepcsovu7bfu7lvbrdg2m_c3892ab2-71ee-40f4-be66-4f65c664f568   3h19m
apiserver-bskcrn2i4gf5c5gco6huepssle   apiserver-bskcrn2i4gf5c5gco6huepssle_00e69eb5-4df9-4c3d-87e0-2eb54d7d93c4   3h30m
apiserver-s5dbgrswajhxxnkoaowmosesjm   apiserver-s5dbgrswajhxxnkoaowmosesjm_3665e3ce-dc72-440d-ba7a-ff08f9c71b6a   3h20m
kube-controller-manager                master1_fd5b1081-93e2-4be8-8eb8-8719a70b606a                                3h29m
kube-scheduler                         master1_2b4c98a1-8d8c-4bb3-a3c4-58793022180a                                3h29m
plndr-cp-lock                          master3                                                                     3h20m
plndr-svcs-lock                        master1                                                                     3h20m

集群节点信息查看

1
2
3
4
5
6
7
8
[root@tiaoban k8s]# kubectl get node
NAME      STATUS     ROLES           AGE     VERSION
master1   Ready      control-plane   3h31m   v1.27.6
master2   NotReady   control-plane   3h22m   v1.27.6
master3   Ready      control-plane   3h21m   v1.27.6
work1     Ready      <none>          3h14m   v1.27.6
work2     Ready      <none>          3h14m   v1.27.6
work3     Ready      <none>          3h14m   v1.27.6

业务访问测试

1
2
[root@tiaoban k8s]# curl 192.168.10.150:30380
Hello MyApp | Version: v1 | <a href="hostname.html">Pod Name</a>

结论：当有一个master节点宕机时，VIP会发生漂移，集群各项功能不受影响。
